Labomed · CX21
Microscopy

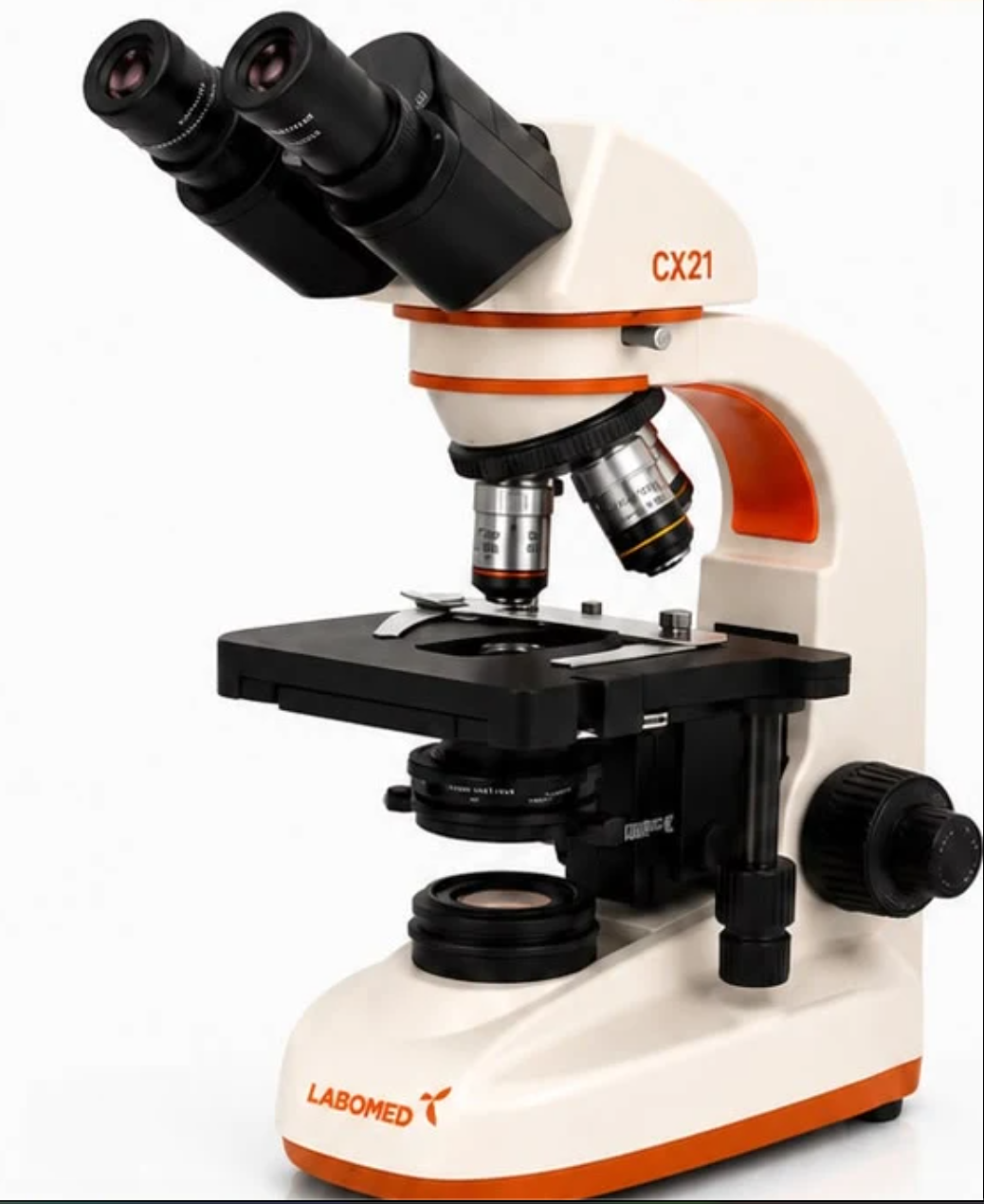

Labomed CX21 Microscope
Designed for routine laboratory applications requiring optical clarity, ease of use and reliable performance.
Key features
- Infinity corrected optical system
- Bright and uniform LED illumination
- Inclined binocular viewing head
- Smooth focusing system
- High-quality objectives
- Durable construction
- Easy maintenance
Applications
Technical specifications View all
- Optical System
- Infinity Corrected Optical System
- Viewing Head
- Binocular, 30-degree inclined, 360-degree rotatable
- Eyepieces
- Wide Field WF 10X / 18 mm
- Nosepiece
- Quadruple revolving nosepiece
- Objectives
- 4X, 10X, 40X spring, 100X oil
- Stage
- Mechanical stage, 140 mm x 140 mm
- Focusing
- Coaxial coarse and fine adjustment
- Condenser
- Abbe condenser, N.A. 1.25 with iris diaphragm
- Illumination
- 3W LED with adjustable brightness
- Power Supply
- AC 100-240V, 50/60Hz
- Dimensions
- 250 x 210 x 400 mm
- Weight
- Approximately 6 kg
Accurex · CBC Part 5
Advanced Five-Part Haematology Analyzer
Accurex CBC Part 5
A fully automated haematology analyser providing five-part differential white blood cell analysis.
Key features
- Five-part differential
- Up to 60 samples per hour
- 9.8 µL whole-blood sample
- Accurate impedance-based measurement
- 7-inch touch interface
- Built-in thermal printer
- Result and histogram storage
- Automatic cleaning and clog prevention
Applications
Technical specifications View all
- Technology
- Electrical impedance for RBC, PLT and WBC
- Reagent
- Cyanide-free
- Parameters
- 25 parameters and 3 histograms
- Sample Volume
- 9.8 µL whole blood
- Throughput
- Up to 60 samples per hour
- Display
- 7-inch colour touch screen
- Storage
- Up to 50,000 results with histograms
- Printer
- Built-in thermal printer
- Communication
- USB, LAN and optional HIS/LIS
- Power
- AC 100-240V, 50/60Hz
- Dimensions
- 410 x 300 x 400 mm
- Weight
- Approximately 18 kg
Accurex
Fully Automated Clinical Chemistry

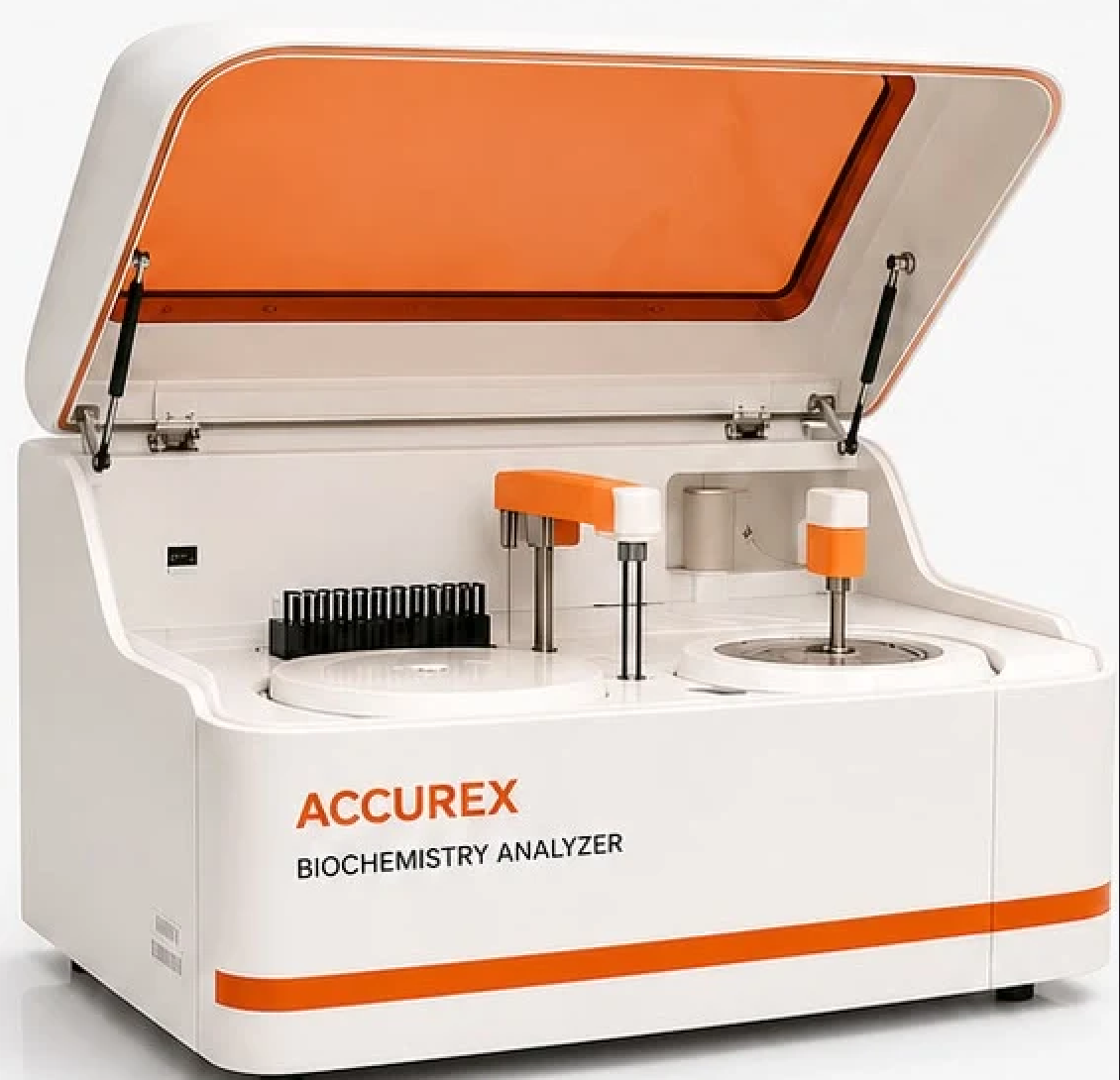

Accurex Biochemistry Analyzer
A fully automated random-access clinical chemistry analyser designed for fast and reliable biochemical testing.
Key features
- Up to 240 tests per hour
- Random-access operation
- Wide test menu
- Low reagent consumption
- Temperature control
- User-friendly software
- Automatic washing
Applications
Technical specifications View all
- Type
- Fully Automated Random Access Biochemistry Analyzer
- Throughput
- Up to 240 tests per hour
- Principles
- End point, fixed time, kinetic, two point and immunoturbidimetry
- Sample Types
- Serum, plasma, urine and CSF
- Sample Volume
- 2-35 µL
- Reagent Volume
- 150-350 µL
- Reagent Positions
- 40 positions refrigerated at 2-8°C
- Sample Positions
- 60
- Reaction Tray
- 90 cuvettes
- Temperature
- 37°C ± 0.1°C
- Wavelengths
- 340, 405, 450, 510, 546, 578, 630, 670 and 700 nm
- Light Source
- Halogen lamp
- Display
- 10.4-inch colour touch screen
- Storage
- Up to 100,000 test results
- Interface
- USB and LAN
- Power
- AC 100-240V, 50/60Hz
- Dimensions
- 680 x 580 x 560 mm
- Weight
- Approximately 65 kg
Accurex
Chemiluminescence Immunoassay

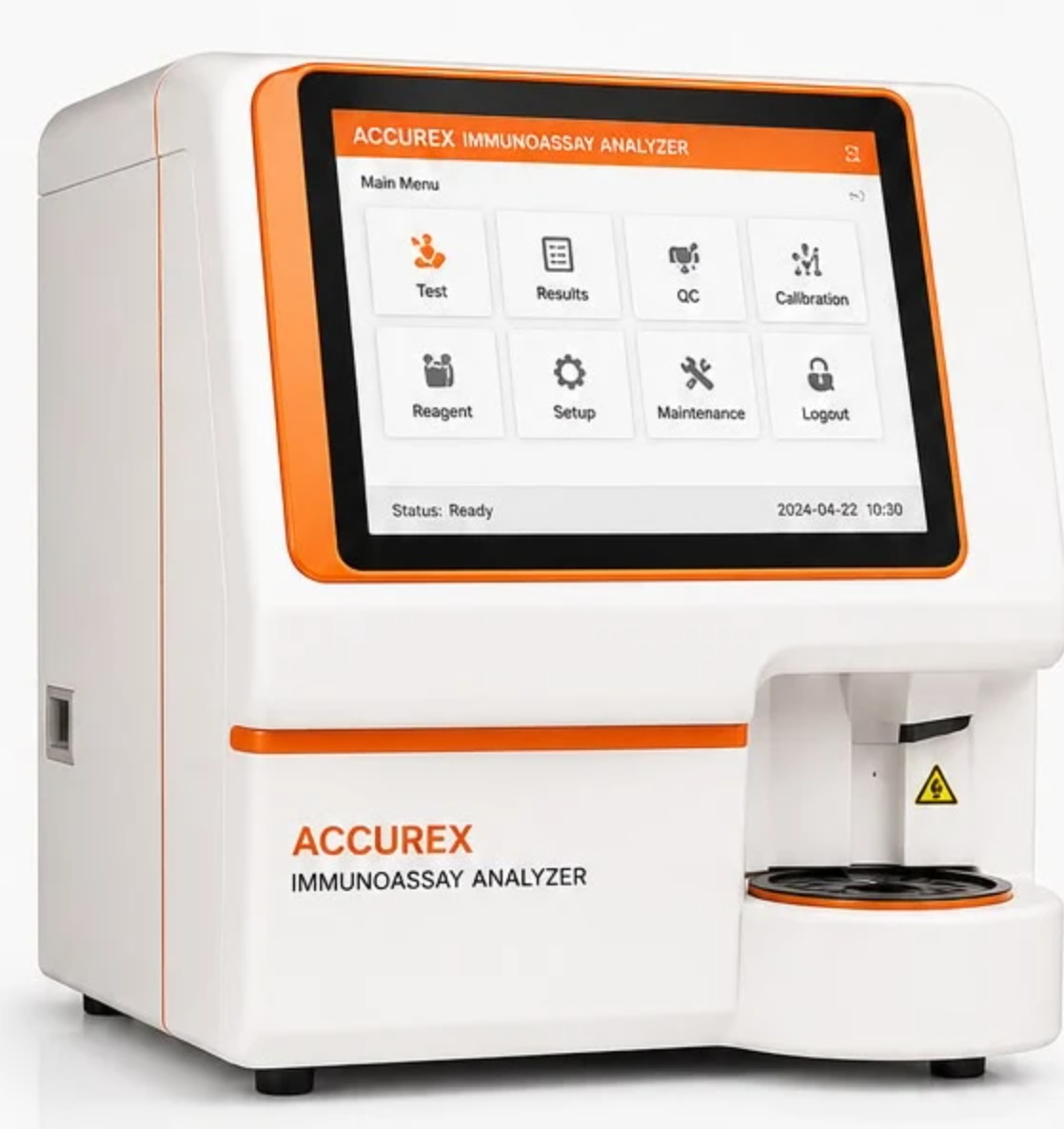

Accurex Immunoassay Analyzer
A fully automated immunoassay system for quantitative detection of hormones, tumour markers, infectious disease markers and related parameters.
Key features
- High accuracy
- Up to 120 tests per hour
- Wide test menu
- Low sample volume
- 7-inch touch interface
- Built-in thermal printer
- Refrigerated reagent system
- Large result storage
Applications
Technical specifications View all
- Method
- Chemiluminescence Immunoassay, CLIA
- Throughput
- Up to 120 tests per hour
- Sample Type
- Serum, plasma and whole blood
- Sample Volume
- 20 µL
- Reagent Positions
- 25 positions, refrigerated at 2-8°C
- Sample Positions
- 60
- Reaction System
- Magnetic microbeads
- Incubation
- 37°C ± 0.2°C
- Detection
- Photomultiplier tube
- Calibration
- Two-point or multi-point
- Quality Control
- Multi-level QC
- Data Storage
- Up to 100,000 results
- Display
- 7-inch colour touch screen
- Printer
- Built-in thermal printer
- Interface
- USB, LAN and optional LIS
- Power
- AC 100-240V, 50/60Hz
- Dimensions
- 560 x 470 x 520 mm
- Weight
- Approximately 32 kg
Accurex
Electrolyte Analyzer
Accurex Electrolyte Analyzer
A fully automated electrolyte analyser using direct ion-selective electrode technology.
Key features
- Accurate and reliable measurements
- Fast throughput
- Low sample volume
- User-friendly operation
- Automatic calibration
- Automatic cleaning
- Built-in printer
- Data storage
- Temperature compensation
Applications
Technical specifications View all
- Principle
- Ion Selective Electrode
- Parameters
- Sodium, potassium, chloride and calcium
- Throughput
- Up to 90 tests per hour
- Sample Types
- Serum, plasma, whole blood and urine
- Sample Volume
- 100 µL
- Measurement
- Direct ISE
- Calibration
- Automatic two-point calibration
- Display
- 7-inch colour touch screen
- Memory
- Up to 10,000 results
- Printer
- Built-in thermal printer
- Interface
- USB and optional LAN
- Power
- AC 100-240V, 50/60Hz
- Dimensions
- 340 x 280 x 260 mm
- Weight
- Approximately 6.5 kg
